Description

DC Coupler DC-C2 | USB Power Delivery (PD) DC Coupler

[Important note on usage]

The power supply adaptor and cable are not provided. Please purchase a USB PD (USB Power Delivery) power supply and a USB Type-C® (USB-C®–USB-C) cable rated at 100 W or higher.

Stable power supply for extended shooting and streaming

The DC-C2 provides continuous, reliable power to cameras that use NP-SA100 batteries, enabling extended photo and video shooting.

Adaptable to diverse usage scenarios

Power provided via a DC plate inserted in the battery chamber frees up the camera’s USB Type-C terminal. A supplied fastening strap can be threaded through a slit in the power unit for secure mounting.

For secure and reliable operation

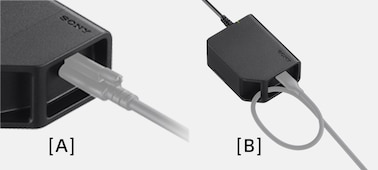

To prevent accidental USB cable disconnection, a screw hole enables reliable locking of USB Type-C cables that have screw-lock connectors, and an anchor loop is provided for USB cables without screw-lock connectors.

[A] screw hole [B] anchor loop

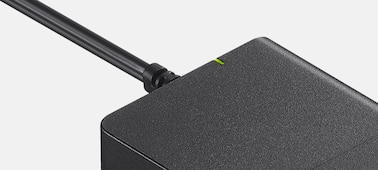

Power supply status indication

The power indicator lamp on the power supply unit turns on when the camera is powered via the DC-C2. It flashes if the power supply or USB cable can’t deliver over 100 W.

Length-adjustable cable for a variety of needs

The 1.6 m (5.2 ft) DC plug-in plate cable allows flexible setup. A tie-wrap can be used to adjust its length as needed.

SONY DC-C2 FULL SPECIFICATIONS

Operating Temperature-0 ℃ to 40 ℃ (32 °F to 104 °F)
Dimension (approx.)-W 55.5 mm x H 70.6 mm x D 32.0 mm (2 1/4 inches x 2 7/8 inches x 1 5/16 inches), excluding the projecting parts
Weight (Approx.)-184 g (6.5 oz)
Compatible Cameras-The camera that supports the “InfoLITHIUM” battery pack (NP-SA100)
Cable Length (Approx.)-1.6 m (5.2 ft)
Power Indicator Lamp-Yes
USB Power Supply-USB Power Delivery support * USB PD power supply and cable not included. Requires separate USB PD (100 W min.) power supply and cable.USB Terminal-Yes (Screw Locking (Single))
